Q: What are the typical package dimensions and weights for a 3–3.5 meter kitchen?

Package sizes and weights vary slightly by SKU. Some customers prefer to pack the sintered stone countertop and cabinet into one large carton, which is heavier but improves end-to-end loading efficiency.

Q: What is the maximum weight of the heaviest individual package?

The A11 (three-drawer cabinet) with 900mm width is the heaviest SKU, at 65.2kg(including cabinet and countertop). The single package weight depends on each cabinet’s size and function.

Q: Approximately how many complete kitchens fit into one 40HQ container?

Approximately 300-320 SKUs (including cabinet and countertop), depending on the cabinet item. This equals about 60-80 sets of outdoor kitchens per 40HQ container, depending on the actual configuration.

Q: What assembly operations are required during the stated 90–120 minute installation?

All on-site assembly can be completed with just a screwdriver; silicone is applied to connect the cabinet and countertop. Leveling is also required as a final check.

Q: Do you provide installation manuals or videos?

Yes, both manuals and videos are provided.

Q: What aluminium alloys are used in the different parts?

The cabinets are modular aluminium outdoor kitchen cabinets with 18mm extruded aluminium (double-layer) panels and fully seamless welded drawer and door panels.

Q: What materials are currently used for the main components?

Stainless steel: hinge, screw, bolt, 30mm leveling leg Aluminium: countertop support, toe kick Zinc metal: 100mm leveling leg, cable sleeve, shelf holder

Q: Do you support factory audits?

Yes, we welcome factory inspections by customers or third parties.

Q: Are corrosion and outdoor weather-resistance test reports available?

The 18mm double-layer extruded aluminium is rated 9.8 in the 96-hour salt spray test.

Q: Are hinge and drawer-slide test reports available?

The hinge has passed the 60,000-cycle opening-closing life test in accordance with ANSI/BHMA A156.9-2020. The drawer slide has passed the 80,000-cycle durability test and 24-hour neutral salt spray test in accordance with QB/T 2454-2013 and GB/T 10125-2021.

SPACE Works extruded aluminium outdoor kitchen cabinet directly addresses current industry pain points: delivering structural durability and design flexibility while significantly reducing your storage, shipping, and installation costs—enabling efficient, seamless delivery from production to the end user.

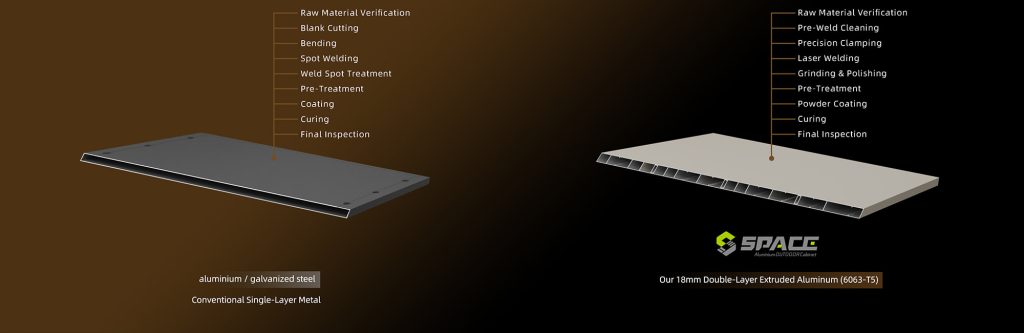

Structural — Engineering Excellence

Our outdoor kitchen cabinet system features 18mm double-layer extruded aluminium construction, precision laser-welded and finished with premium powder coating. This innovative dual-layer architecture provides exceptional structural integrity—resistant to warping, corrosion, and extreme weather—while remaining remarkably lightweight. It represents a significant engineering advancement over the conventional single-layer metal solutions commonly found on the market.

The outcome is a seamless, premium aesthetic from interior to exterior, ensuring your outdoor kitchen maintains its luxury appeal from every viewing angle.

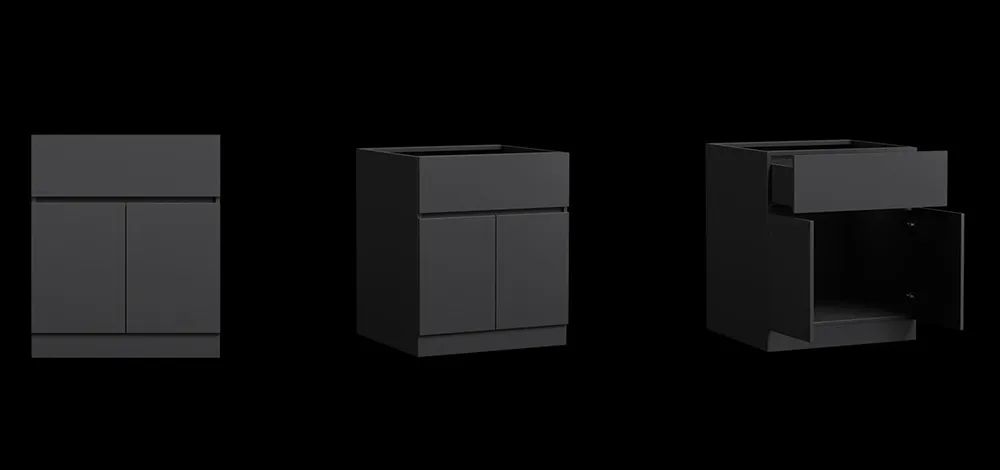

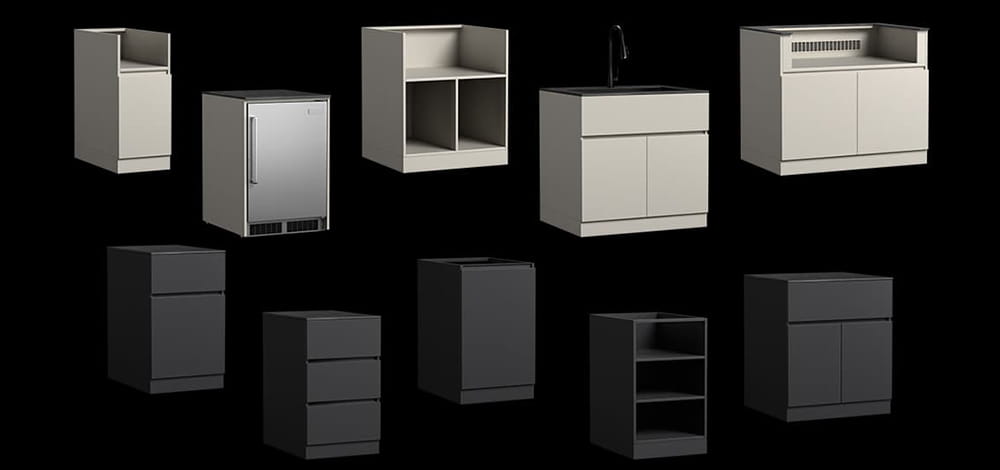

Modular — Unlimited Configuration

With 20+ SKU options, our modular architecture empowers end-users to curate their ideal outdoor culinary space without compromise.

Each component is designed for infinite configuration possibilities, allowing consumers to build truly bespoke outdoor kitchens tailored to their specific spatial requirements and lifestyle preferences—transforming standard product selection into a personalized design experience.

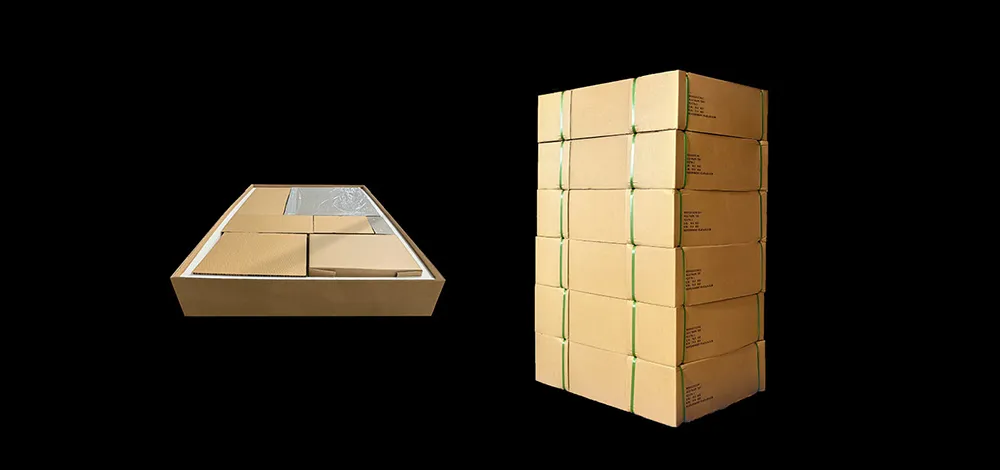

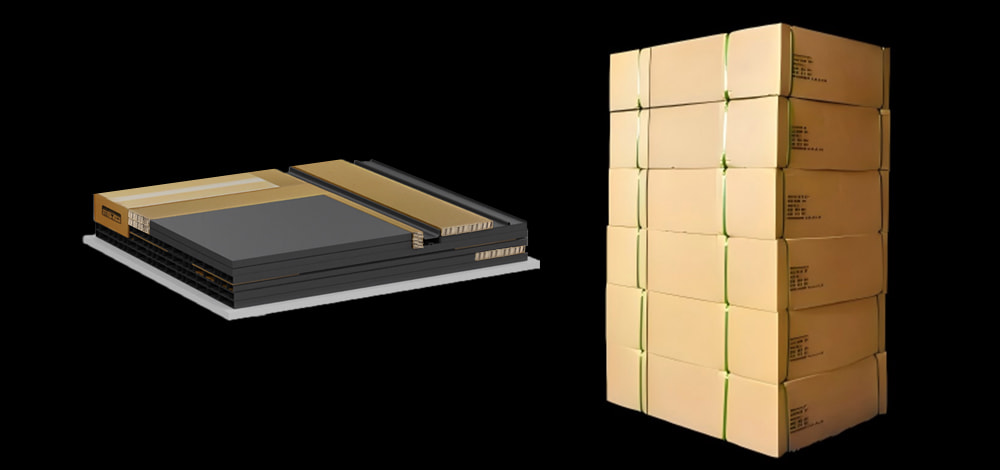

Flat-Pack — Supply Chain Optimization

Our approach to flat-pack design delivers a comprehensive logistical advantage. Unlike conventional solutions limited to cabinet bodies, our system includes countertops and all components in optimized flat-pack formats. This delivers complete flat-pack efficiency from factory to final destination.

This innovation translates into direct, quantifiable cost savings across the entire supply chain:

Ocean Freight: Significantly reduced volume per unit maximizes container utilization.
Warehousing: Optimized storage density lowers inventory footprint and handling costs.
Last-Mile Delivery: Engineered unit formats (15–42kg/SKU) are designed for efficient, safe, and cost-effective final logistics handling.

The result is a powerful dual benefit: based on verified data, this methodology typically increases net margins by 5%+ while simultaneously meeting the modern consumer’s expectation for reliable, cost-effective delivery solutions.

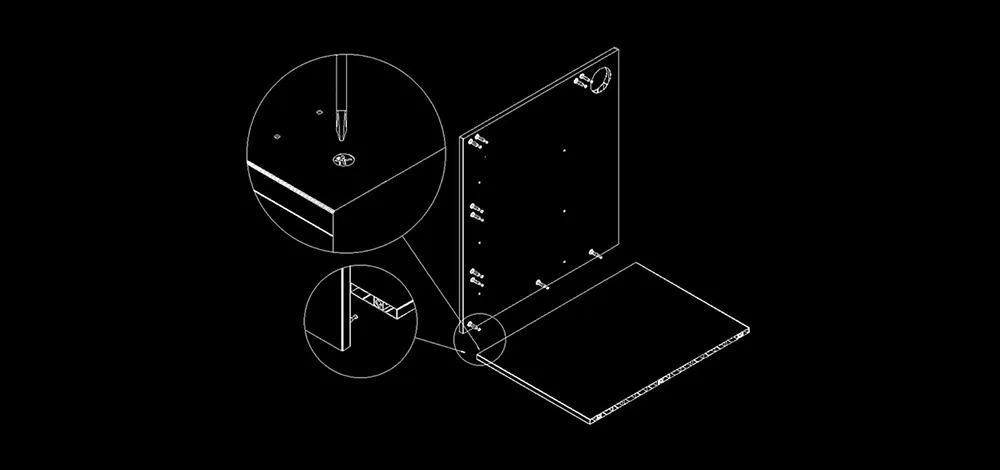

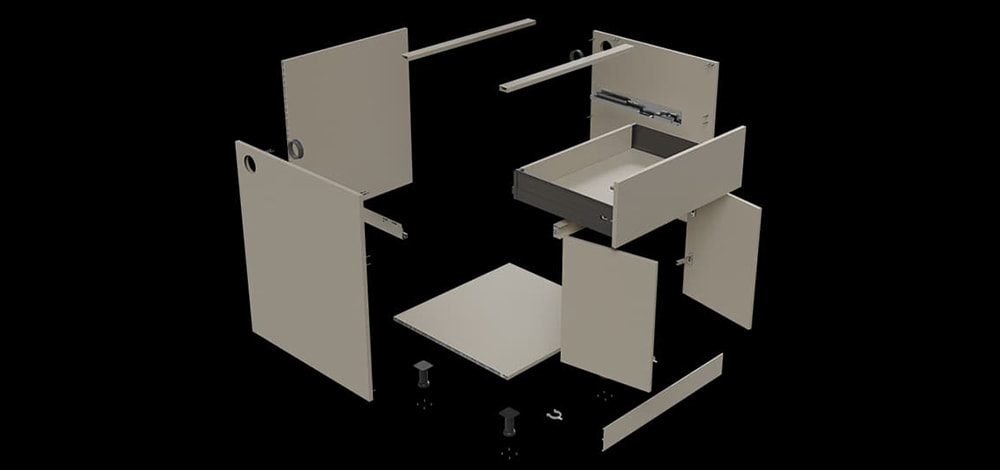

Rapid On-Site Assembly — Labor Efficiency

Engineered for simplicity and speed, our assembly system dramatically reduces installation time and complexity, delivering significant labor cost savings.

Assembly Specifications:

Tool Requirement: Only one screwdriver is needed for the entire installation.
Fastener System: Streamlined to just two screw types for the whole system, eliminating confusion.
Precision Engineering: All panels feature factory-precision 3-in-1 ram drilling for perfect, error-free alignment every time.

Time Efficiency:

Individual SKU Assembly: Just 10–20 minutes per component.
Complete Kitchen Installation: A full 3–3.5m kitchen (including countertops) can be assembled and installed in ≤2 hours by a single person.

This meticulously streamlined process reduces on-site labor costs by up to 50%, while its foolproof design virtually eliminates assembly errors and costly service callbacks, ensuring a smooth, professional finish.

FAQ

What are the typical package dimensions and weights for a 3–3.5 meter kitchen?

What is the maximum weight of the heaviest individual package?

Approximately how many complete kitchens fit into one 40HQ container?

What assembly operations are required during the stated 90–120 minute installation?

Do you provide installation manuals or videos?

What aluminium alloys are used in the different parts?

What materials are currently used for the main components?

Do you support factory audits?

What is the powder-coating specification and coating thickness?

Are corrosion and outdoor weather-resistance test reports available?

Are hinge and drawer-slide test reports available?

What countertop materials and thicknesses are available?

Is your system based on standard modular dimensions, or can you manufacture custom-sized modules according to our drawings and project requirements?

What is your export packing?

What are your lead times?

What is your MOQ (minimum order quantity)?

5-Step Quick-Decision Flow

Stand-alone vs. back-to-wall
Straight / L-shape / U-shape / Island

With a tape measure, note the **exact wall-to-wall or patio span** (in cm or in).

Select modular cabinets and list them **left-to-right** as you want them arranged.
☐ Grill cabinet (suite to 36″ or 42″)
☐ Side-burner cabinet (one or two door)
☐ Kamado cabinet (with bottom 2 door or open shelf or drawer)
☐ Sink cabinet (one or two door)
☐ Storage cabinet (one or two door or drawer)
☐ Refrigerator housing cabinet
☐ Trash can pull-out cabinet

Add up the **module widths** shown in the “modules Page”; total must be ≤ Step 2 result.

Cabinet colour: __________ (Dark Grey / White / Khaki / Light Brown)
Counter-top: __________ (Select from the sintered stone style pictures in the “Components Page”)
