Project Overview

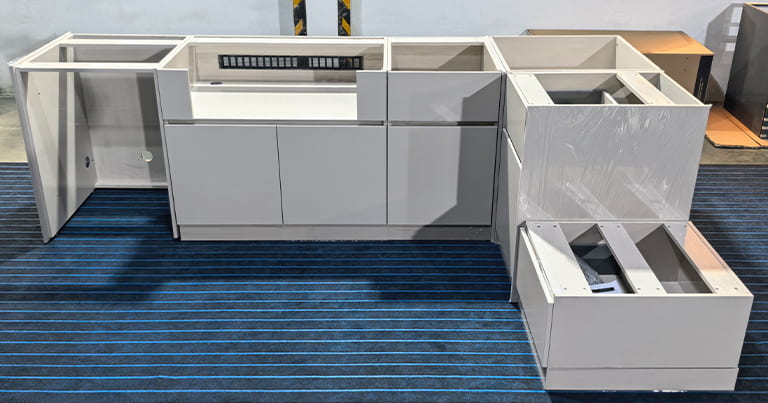

We recently completed a sample order for a German client: a small L-shaped outdoor kitchen built with our H800 Series extruded aluminium cabinet system. Despite its compact footprint, this L shape outdoor kitchen is fully functional — combining refuse, sink, fridge, grill, corner and kamado modules into one complete l shaped outdoor bbq kitchen solution.
This project is a perfect example of how a luxury modern outdoor kitchen can be achieved in a small space without compromising on function, durability or design.
Module Configuration
Long side (5 modules):
- Refuse cabinet
- Sink cabinet
- Fridge cabinet
- 36″ grill cabinet
- Corner cabinet
Short side (1 module):
- Kamado cabinet
In total, 4 functional SKUs plus 1 corner SKU on the long side, and a single kamado cabinet on the short side — a compact but complete l shaped outdoor kitchen.
Material & Craftsmanship
The entire cabinet set is made of 18mm double-layer extruded aluminium panel, a material chosen for its strength, corrosion resistance and suitability for outdoor use.
Key details that define this luxury outdoor bbq kitchen:
- Door panels: six-sided seamless welding process, delivering a clean, monolithic look with no visible joints.
- Side and back panels: top and bottom edges are also sealed, making installation safer and more comfortable.
- No exposed profile sections: after assembly, no aluminium profile cross-sections are visible on top of the cabinets — a cleaner appearance and a more premium user experience.
- Finish: powder coating in standard Khaki color.
- Series: H800 Series, cabinet height 800mm.
- Adjustable feet: 100mm leveling feet for uneven outdoor surfaces.
- Kickboard: extruded aluminium profile.
- Handles: handle-less design, also in extruded aluminium profile.
A key design highlight: the handles, kickboard and cabinet body use the same material and the same color, creating a fully integrated, uniform appearance — an important detail for clients looking for a luxury modern outdoor kitchen.
Custom Fit Details
Grill Cabinet
The grill cabinet is custom cut out to match the client’s selected grill. Whether you choose a grill from our configuration or supply your own, the cut-out size of our grill cabinet can be perfectly matched to your equipment.
Check our Grill Compatibility & Cutout Library for details.
Kamado Cabinet
The kamado cabinet is designed as a base cabinet with a large drawer, allowing organized and tidy storage of kitchen accessories and tools.
Fridge Cabinet
The standard width of the fridge cabinet is 650mm, matching common single-door outdoor refrigerators on the market. This module can also be customized in width based on the client’s chosen fridge size.
OEM / ODM Capability
As an OEM/ODM aluminium outdoor cabinet supplier, we offer:
20+ standard outdoor cabinet modules in standard sizes
Size fine-tuning of existing modules according to client requirements
New module development for fully customized layouts
This German sample project demonstrates our ability to deliver a small l shaped outdoor kitchen that is compact, fully equipped and finished to a high standard — ideal for terraces, courtyards, rooftops and compact outdoor entertaining areas.
Why This Project Matters
For customers searching for a small l shaped outdoor kitchen or an l shaped outdoor bbq kitchen, the common challenge is fitting full functionality into limited space. This L-shaped configuration solves that by:
Placing all wet and storage functions along the long side
Using the corner module to create a smooth, continuous workflow
Adding a dedicated kamado cabinet on the short side for charcoal grilling
The result is a luxury outdoor bbq kitchen that feels spacious in use, even when the actual footprint is small.
Looking for a Similar Solution?
If you are planning a luxury modern outdoor kitchen project — whether for retail, distribution or a private residence — we can support you with standard modules, customized dimensions and full OEM/ODM development.
Contact us to discuss your L-shaped outdoor kitchen layout, grill and fridge specifications, and color requirements.
